Series 1200
Models: 1200, 1200C, 1200HC
Capacity: up to 12000 lbs
The rugged construction and versatility of the Series 1200 and Series 1200C make it adaptable to a wide range of applications. Series 1200 direct drive winches are used for industrial pulling and hoisting applications, fishing boats, marine craft, drill rigs, small cranes,factory material handling and rear load waste handlers. Series 1200C and 1200HC winches are equipped with a sliding clutch to allow free-spooling of the drum for pulling and dragging applications including factory material handling, mining and logging equipment, flat bed trailers, air freight pullers, off the road tractors and rear of cab and front mounting on ½ to 1½ ton trucks. Both Series 1200 and Series 1200C are available with a oil cooled adjustable automatic safety brake in a variety of motor displacements. Series 1200, 1200C and 1200HC may be ordered galvanized.
Request More Information
Documents & Videos for the Series 1200
Series 1200 Features
Gear Case
Made of high strength cast iron. Completely sealed for oil enclosed operation and to keep dirt out.
Worm Shaft
One piece alloy steel hardened and ground for extra durability.
Worm Gear
High tensile aluminum-nickel alloy bronze. Optimum lead and pressure angles transmit maximum power to the drum.
Gear Ratio
20:1 standard, 27:1 and 40:1 optional ratios provide optimum efficiency in power and speed.
Bearings
Worm and drum shaft run on tapered roller bearings. Outer end housing has a sealed ball bearing.
Drum Shaft
1-1/2” diameter heat -treated alloy steel minimum tensile strength 150,000 psi.
Cable Drum
Tough all steel construction resists breakage and warping.

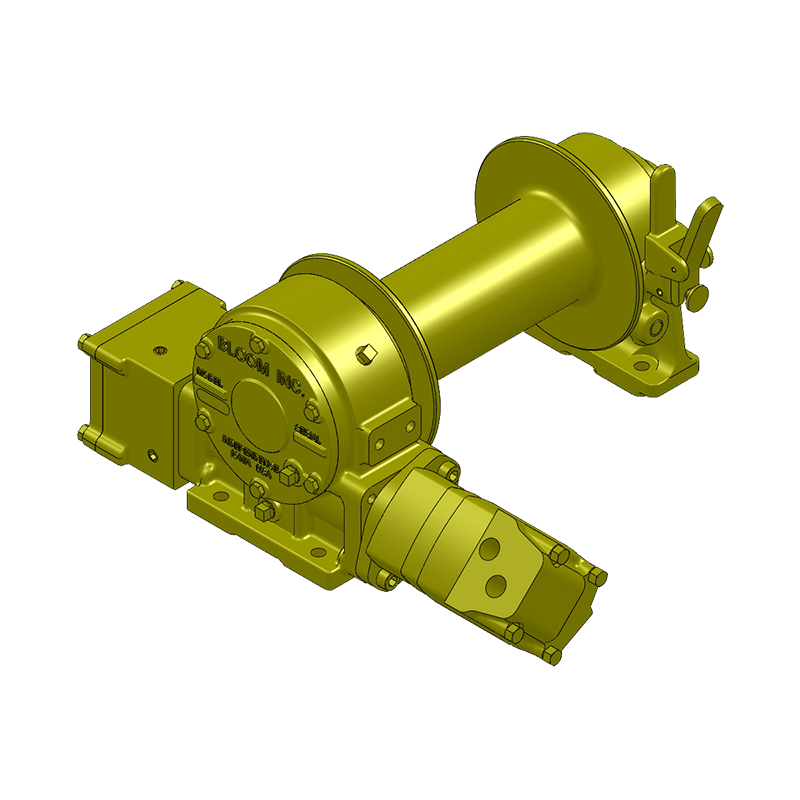

Clutch Option (1200C & 1200HC)
Series 800C winches come equipped with heat-treated dog type clutch to provide free-spooling winch drum. Positive lock-in and lock-out.

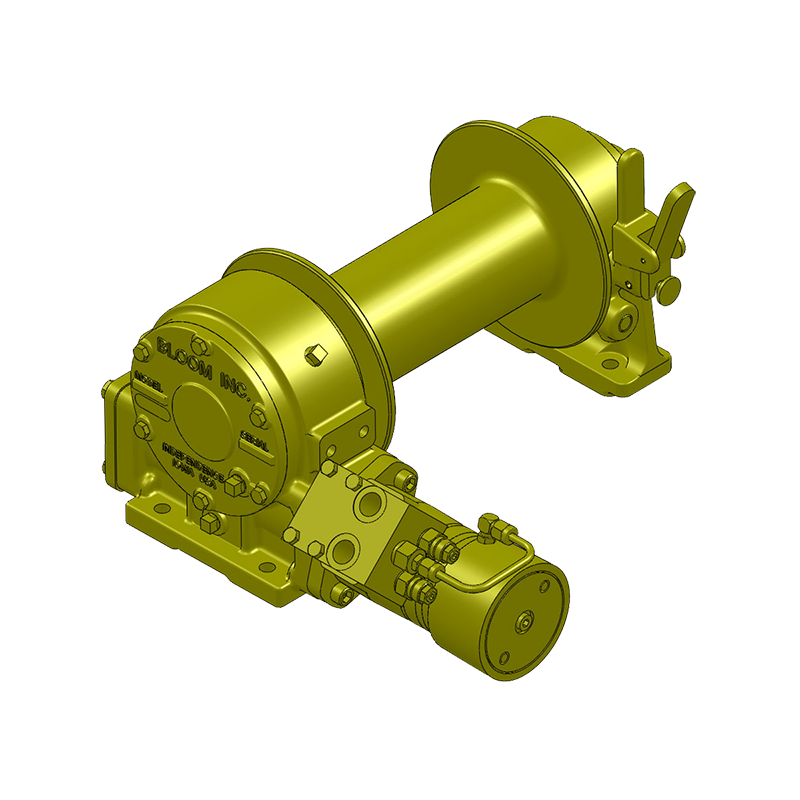

Motor-Brake (1200HC Only)
DUET-SAFE® Double Action Braking System combines a powerful spring-applied, hydraulic released motor-brake with a double counter balance brake valve to automatically hold loads when hydraulic pressure is released and control speed during lowering operations. Winch is ideal for high-speed pulling applications or wherever load holding is critical.
Models
12B-A-S8 , 12B-A-L8 , 12B-A-XL10 , 12B-A-XL12 , 12B-A-XL14 , 12B-B-S8 , 12B-B-L8 , 12B-B-XL10 , 12B-B-XL12 , 12B-B-XL14 , 12B-C-S8 , 12B-C-L8 , 12B-C-XL10 , 12B-C-XL12 , 12B-C-XL14 , 12B-DD-S8 , 12B-DD-L8 , 12B-DD-XL10 , 12B-DD-XL12 , 12B-DD-XL14 , 12B-E-S8 , 12B-E-L8 , 12B-E-XL10 , 12B-E-XL12 , 12B-E-XL14 , 12B-G-S8 , 12B-G-L8 , 12B-G-XL10 , 12B-G-XL12 , 12B-G-XL14 , 12B-4.9-S8 , 12B-4.9-L8 , 12B-4.9-XL10 , 12B-4.9-XL12 , 12B-4.9-XL14 , 12B-6.2-S8 , 12B-6.2-L8 , 12B-6.2-XL10 , 12B-6.2-XL12 , 12B-6.2-XL14 , 12B-8.0-S8 , 12B-8.0-L8 , 12B-8.0-XL10 , 12B-8.0-XL12 , 12B-8.0-XL14 , 12B-9.6-S8 , 12B-9.6-L8 , 12B-9.6-XL10 , 12B-9.6-XL12 , 12B-9.6-XL14 , 12B-11.9-S8 , 12B-11.9-L8 , 12B-11.9-XL10 , 12B-11.9-XL12 , 12B-11.9-XL14 , 12B-A-S8C , 12B-A-L8C , 12B-A-XL10C , 12B-A-XL12C , 12B-A-XL14C , 12B-B-S8C , 12B-B-L8C , 12B-B-XL10C , 12B-B-XL12C , 12B-B-XL14C , 12B-C-S8C , 12B-C-L8C , 12B-C-XL10C , 12B-C-XL12C , 12B-C-XL14C , 12B-DD-S8C , 12B-DD-L8C , 12B-DD-XL10C , 12B-DD-XL12C , 12B-DD-XL14C , 12B-E-S8C , 12B-E-L8C , 12B-E-XL10C , 12B-E-XL12C , 12B-E-XL14C , 12B-G-S8C , 12B-G-L8C , 12B-G-XL10C , 12B-G-XL12C , 12B-G-XL14C , 12B-4.9-S8C , 12B-4.9-L8C , 12B-4.9-XL10C , 12B-4.9-XL12C , 12B-4.9-XL14C , 12B-6.2-S8C , 12B-6.2-L8C , 12B-6.2-XL10C , 12B-6.2-XL12C , 12B-6.2-XL14C , 12B-8.0-S8C , 12B-8.0-L8C , 12B-8.0-XL10C , 12B-8.0-XL12C , 12B-8.0-XL14C , 12B-9.6-S8C , 12B-9.6-L8C , 12B-9.6-XL10C , 12B-9.6-XL12C , 12B-9.6-XL14C , 12B-11.9-S8C , 12B-11.9-L8C , 12B-11.9-XL10C , 12B-11.9-XL12C , 12B-11.9-XL14C , 12H-3.0T-S8C, 12H-3.0T-L8C, 12H-3.0T-XL10C, 12H-3.0T-XL12C, 12H-3.0T-XL14C, 12H-6.2T-S8C, 12H-6.2T-L8C, 12H-6.2T-XL10C, 12H-6.2T-XL12C, 12H-6.2T-XL14C, 12H-9.6T-S8C, 12H-9.6T-L8C, 12H-9.6T-XL10C, 12H-9.6T-XL12C, 12H-9.6T-XL14C
