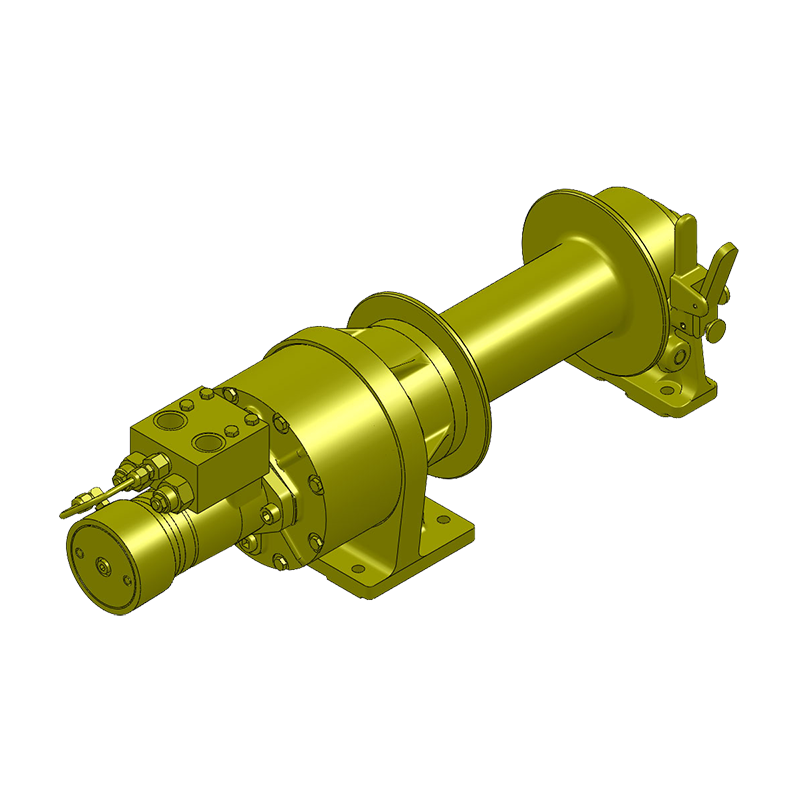

Series 2000
Models: 2000HC, 2000KC
Capacity: up to 12800 lbs
The rugged construction and versatility of Series 2000 makes it adaptable to a wide range of applications. Series 2000 winch is equipped with a sliding clutch to allow free-spooling of the drum for pulling and dragging applications including factory material handling, mining and logging equipment, flat bed trailers, air freight pullers, off the road tractors and rear of cab and front mounting on trucks. Series 2000 is standard with Fail-Safe Brake.
Request More Information
Documents & Videos for the Series 2000
Series 2000 Features
Gear Case
Made of high strength cast iron and steel. Completely sealed for oil enclosed operation and to keep dirt out.
Planetary Gear
Gear Ratio
17:1 standard.
Bearings
Drum Shaft is supported by two heavy duty oil lubricated bearings in gear case, and one permanently sealed ball bearing in end housing.
Drum Shaft
1-1/2" diameter heat-treated alloy steel minimum tensile strength 150,000 psi.
Cable Drum
Tough all steel construction resists breakage and warping.
Clutch Option
Series 2000KC winches comes equipped with heat-treated dog type clutch to provide free-spooling of the winch drum. Positive lock-in and lock-out.
Brake
Models
20H-3.0T-S8C-17 , 20H-3.0T-L8C-17 , 20H-3.0T-XL10C-17 , 20H-3.0T-XL12C-17 , 20H-3.0T-XL14C-17 , 20H-6.2T-S8C-17 , 20H-6.2T-L8C-17 , 20H-6.2T-XL10C-17 , 20H-6.2T-XL12C-17 , 20H-6.2T-XL14C-17 , 20K-4.9M-S8C-17 , 20K-4.9M-L8C-17 , 20K-4.9M-XL10C-17 , 20K-4.9M-XL12C-17 , 20K-4.9M-XL14C-17 , 20K-6.2M-S8C-17 , 20K-6.2M-L8C-17 , 20K-6.2M-XL10C-17 , 20K-6.2M-XL12C-17 , 20K-6.2M-XL14C-17
