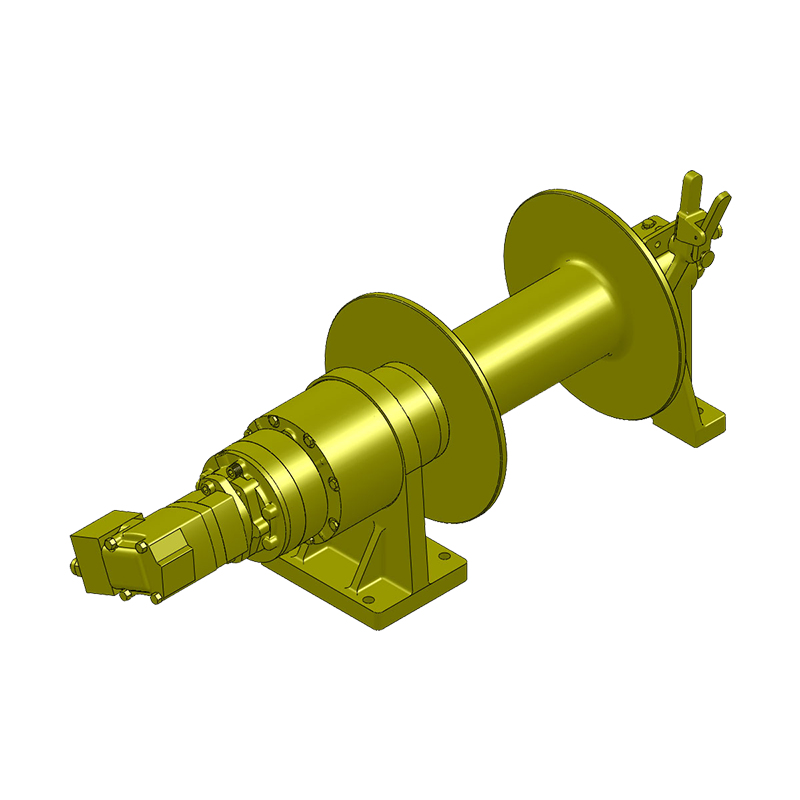

Series 2200

Series 2200 Features

• Gear Case

  Made of high-strength cast iron. Completely sealed for oil enclosed operation and to keep dirt out.

• Planetary Gear

  High Efficiency Double Reduction – Rugged - Built to Last.

• Gear Ratio

  17:1 standard.

• Bearings

  Drum Shaft is supported by two heavy duty oil lubricated bearings in gear case, and one permanently sealed ball bearing in end housing.

• Drum Shaft

  2-1/4" diameter heat-treated alloy steel minimum tensile strength 150,000 psi.

• Cable Drum

  Tough all steel construction resists breakage and warping.

• Clutch Option

  Series 2200 winches come equipped with heat-treated dog type clutch to provide free-spooling of the winch drum. Positive lock-in and lock-out.

• Brake

  DUET-SAFE® Double Action Braking System combines a powerful spring applied, hydraulic released motor-brake with a double counter balance brake valve to automatically hold loads when hydraulic pressure is released and control speed during lowering operations. Winch is ideal for high-speed pulling applications or wherever load holding is critical.

• Models

  22H-3.0T-S145C-17 , 22H-3.0T-L145C-17 , 22H-6.2T-S145C-17 , 22H-6.2T-L145C-17 , 22H-9.6T-S145C-17 , 22H-9.6T-L145C-17 , 22H-11.9T-S145C-17 , 22H-11.9T-L145C-17 , 22K-4.9M-S145C-17 , 22K-4.9M-L145C-17 , 22K-6.2M-S145C-17 , 22K-6.2M-L145C-17 , 22K-8.0M-S145C-17 , 22K-8.0M-L145C-17 , 22K-9.6M-S145C-17 , 22K-9.6M-L145C-17 , 22K-11.9M-S145C-17 , 22K-11.9M-L145C-17
